DSP-60kw Digital Air Cooled Induction Heating Machine for Pwht

Place of Origin : CHINA

Work Power : 3*380V/415V/440V/480V 50-60Hz

The Range of Operating Voltage : 340-430V AC

Model NO. : DSP-60KW

Frequency : 10-40kHz

Size : 600*800*830

Price : 3000

Packaging Details : PLY WOODEN BOX PACKAGE

Input Current : 90A

Type : Induction Heating Machine

Power : 60kw

Delivery Time : 7DYAS

Structure : Vertical Type

Weight : 100kg

Application : Heating, Quenching, Forging, Melting, Welding

Specification : CE, SGS, ISO

Origin : China

Supply Ability : 1000SETS/MONTH

Trademark : ORD

Certification : CE/ROHS/ SGS...

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Brand Name : OURUIDA

Transport Package : Wooden Box

HS Code : 8514400090

Production Capacity : 10, 000sets

Contact Now

DSP-60KW China supply digital induction heating machine for PWHTand Shrint Fit Bearing

DSP-60kw Digital Air Cooled Induction Heating Machine for PwhtDSP-60kw Digital Air Cooled Induction Heating Machine for PwhtDSP-60kw Digital Air Cooled Induction Heating Machine for Pwht


Advantage:
1 More than26years experience, stable and goods performance
2 CE certificated
3Â Digital Type
4 8 Section heating


Main Characteristic:

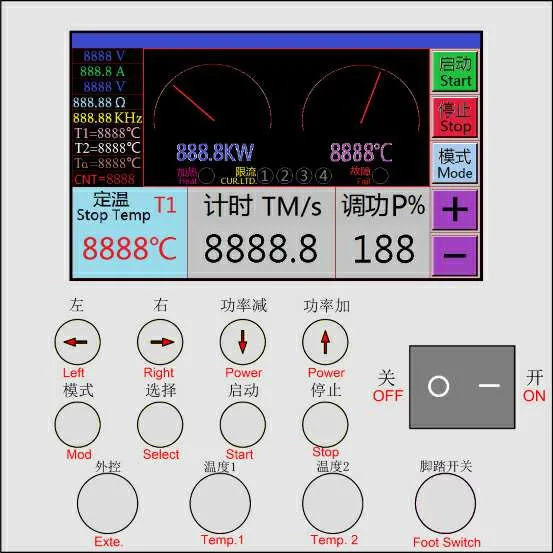

1 Front Panel use the LCD Touch Screen, Key and Power Switch, all digital
display, can use Switch Signal( Electrical frequency signal) to control the
machine start and stop, and control the power via PLC.(RS232 or RS485 is
options).
Visual Human-computer Interface makes the operator feel more intimate and
intuitive. Because of its abundant industrial interfaces, it has stronger and
more flexible matching ability with robots, various automation equipment and
remoe control (unmanned) devices.
2 Induction Heating Machine have remote control function and adopt digital
circuit control, power regulation can be adjusted from 0% to 100% resolution,
and digital PID temperature control module can be configured to set the target
temperature of workpiece (infrared temperature measurement or
thermocouple temperature measurement) automatically. The accuracy of
temperature control is + 1'C for power regulation in heating process.
3 There are 5 working model, manual, timer, temperature, Constant
temperarure, section heating model.
1) Manual, On and stop in the Switch
2 ) Timer, setting heating time, after reach the heating time, then stop.
Fixed Temperature: Set the heating temperature that we need it, when the
reach to the temperature that we need it, then stop the machine.
3) Constant Temperature: Adjust the heating power automatic to keep the
same temperature to the workpiece.
4) Section Heating model, there are 8(S1-S8) options, each section can set
the heating power, timer, temperature or constant temperarture, temperature
or constant temperature just can choose any one. Power as 0 means no need
to heat, put the paramater that you need to set, if not choose that function
then show"--
5) There are 9 (P1-P9)programs, which can memorize 9 different workpiece in
the machine, and select programs by clicking P(P1-P9). Can save much time
if you have many workpiece in one machine, you can choose the programs
(P1-P9) to fast working
DSP-60kw Digital Air Cooled Induction Heating Machine for Pwht
DSP-60kw Digital Air Cooled Induction Heating Machine for Pwht


DSP-60kw Digital Air Cooled Induction Heating Machine for Pwht
DSP-60kw Digital Air Cooled Induction Heating Machine for PwhtDSP-60kw Digital Air Cooled Induction Heating Machine for Pwht
 Type DSP-60KW
 Work Power  3*380v/415v/440v/480v 50-60hz
 The range of operating voltage  340-430V AC
 Output power  60KW
 Input current  90A
 Fluctuating frequency 15-35khz
 Timing (Heat time,Retain time,Cool time)  1-9999S
Heating Section  8Sections
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight  100KG
 Size  600*800*830mm

DSP-60kw Digital Air Cooled Induction Heating Machine for PwhtDSP-60kw Digital Air Cooled Induction Heating Machine for Pwht
DSP-60kw Digital Air Cooled Induction Heating Machine for Pwht
