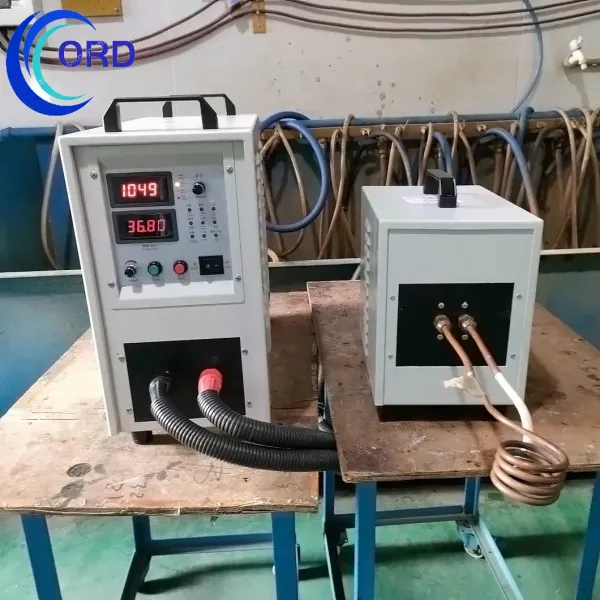

China Supply High Frequency Induction Heating Machine for Heating The Iron Roll (HF-25KW)

MOQ : 1

Price : 1000

Model NO. : HF-25KW

Working, Retail, Cooling Time : 1-99s

Work Voltage : 380V, 400V, 415V, 440V, 480V

Trademark : ORD

Application : Heater, Cooler, Vaporizer, Condenser

Water Temperature Protection Point : 40c

Brand : Ord

Main Use : Heating, Quenching, Forging, Melting, Welding

Origin : China

Structure : Vertical Type

Power : 25kw

The Flow Rate Wate : ≥19L/Min

Frequency : 30-80kHz

Specification : CE, ISO

HS Code : 8514400090

Transport Package : Wooden Box

Product Name : Induction Heating Equipment

Cooling System : Water Cooling System

Production Capacity : 10, 000sets

Principle : Mixing Heat Exchanger

Structure Material : Metal Material

Heat Transfer Surface : Tubular Heat Exchanger

Contact Now

China Supply High Frequency induction heating machine for heating the iron roll (HF-25KW):
China Supply High Frequency Induction Heating Machine for Heating The Iron Roll (HF-25KW)China Supply High Frequency Induction Heating Machine for Heating The Iron Roll (HF-25KW)
China Supply High Frequency Induction Heating Machine for Heating The Iron Roll (HF-25KW)


Advantage:
1 More than 21 years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coil
6 IGBT
7 IXYS BridgeÂ
8 DELIXI SwitchÂ

Main characteristics:
1 IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
China Supply High Frequency Induction Heating Machine for Heating The Iron Roll (HF-25KW)China Supply High Frequency Induction Heating Machine for Heating The Iron Roll (HF-25KW)China Supply High Frequency Induction Heating Machine for Heating The Iron Roll (HF-25KW)China Supply High Frequency Induction Heating Machine for Heating The Iron Roll (HF-25KW)China Supply High Frequency Induction Heating Machine for Heating The Iron Roll (HF-25KW)
 China Supply High Frequency Induction Heating Machine for Heating The Iron Roll (HF-25KW)
 Type HF-25KW
 Work Power  3*380v/415v/440v/480v 50-60hz
 The range of operating voltage  340-430V AC
 Output power  25KW
 Input current  28A
 Fluctuating frequency  30-80khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 18L/Min
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight  Mainparts:38Kg   Transformer: 25
 Size Main Parts:600*350*600MM
Transformer: 550*300*500MM

Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.Â
2. Inquiry and consulting support.Â
3. Sample testing support.Â
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.Â
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
