220V-230V High Frequency IGBT Induction Heating Machine for Serrated Heat Treatment

Brand Name : OURUIDA

Model Number : UHF-6KW

Place of Origin : CHINA

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 10000

Delivery Time : 1-3

Packaging Details : EXPORT WOODEN BOXES

Model NO. : UHF-6KW

Type : Induction Heating Machine

Structure : Horizontal Type

Brand : Ord

Power : 5kw

Frequency : 1.5mkz

Voltage : 220V Simple Phase

Advantage 1 : Fast to Heating ,Reliable Stability

Advantage2 : Easy to Operate , Easy to Move

Advantage3 : Low Energy Consumption, High Efficiency

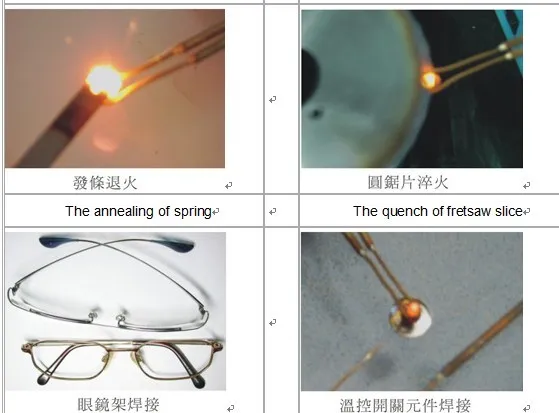

Application : Heating , Brassing , Soldering Annealing Welding

Application a : Quenching and So on

Transport Package : Wooden Box

Specification : CE, SGS, ISO

Trademark : ORD

Origin : China

HS Code : 8514400090

Production Capacity : 10, 000sets

Certification : CE ROHS SGS

MOQ : 1

Price : 1000

Contact Now

220V-230V High Frequency IGBT Induction Heating Machine for Serrated Heat Treatment
220V-230V High Frequency IGBT Induction Heating Machine for Serrated Heat Treatment
Induction heating is a process used to bond, harden, or soften metals and other conductive materials. For modern manufacturing, induction heating offers an attractive combination of speed, consistency, control, and energy efficiency.
The basic principles of induction heating have been applied to manufacturing since the 1920s. During World War II, the technology developed rapidly to meet urgent wartime requirements for fast, reliable metal hardening processes for engine parts.
More recently, the focus on lean manufacturing techniques and improved quality control has led to a rediscovery of induction technology, along with the development of precisely controlled, all solid-state induction power supplies.

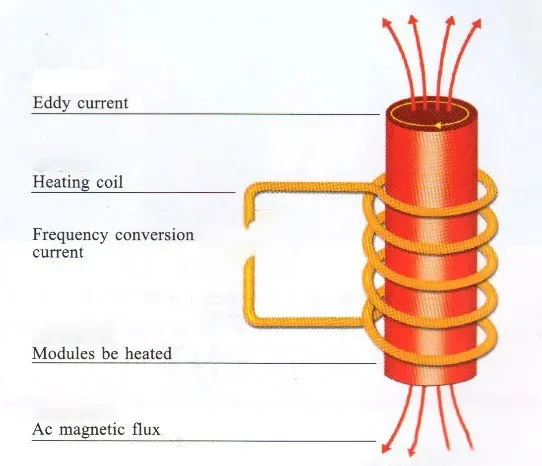

How Induction Heating Works
When an alternating electrical current is applied to the primary of a transformer, an alternating magnetic field is created. According to Faraday's Law, if the secondary of the transformer is located within the magnetic field, an electric current will be induced.
In a basic induction heating setup, a power supply sends an AC current through an inductor (typically a copper coil), and the part to be heated (the workpiece) is placed inside the inductor. The inductor serves as the transformer primary and the part becomes a short circuit secondary. When a metal part is placed within the inductor and enters the magnetic field, circulating eddy currents are induced within the part.
220V-230V High Frequency IGBT Induction Heating Machine for Serrated Heat Treatment
Key Advantages
  • Utilizes advanced IGBT power tubes and second-generation inversion technology
  • Adjustable power timing in heating cycles improves quality, repeatability, and simplifies operator training
  • Easy installation - connects to single phase (220V) power supply, induction coil, and water cooling system
  • Compact size and lightweight design with simple operation - operators can learn in minutes
  • Enhanced safety with output power below 36V, eliminating high voltage risks
  • Heating efficiency exceeds 95%, saving approximately 70% power compared to vacuum tube high frequency equipment
  • Interchangeable induction coils for convenient setup changes with fast heating speed that reduces workpiece oxidation and deformation
220V-230V High Frequency IGBT Induction Heating Machine for Serrated Heat Treatment 220V-230V High Frequency IGBT Induction Heating Machine for Serrated Heat Treatment 220V-230V High Frequency IGBT Induction Heating Machine for Serrated Heat Treatment 220V-230V High Frequency IGBT Induction Heating Machine for Serrated Heat Treatment 220V-230V High Frequency IGBT Induction Heating Machine for Serrated Heat Treatment
Technical Specifications
Input Voltage AC220V 50HZ
Input Current 23A
Output Power 5000W
Minimum Power >40W
Fluctuating Frequency 1.5MHZ
Dimensions Main: 430 x 280 x 90mm
Part: 230 x 100 x 115mm
Net Weight 10.8KG
Working Method Continuous
Working Environment Indoor, dust-free, temperature below 40°C
Cooling System Water cooling below 40°C
Working Condition Fixed output power (non-adjustable)
Pre-Sale Services
  • Recommend the most suitable machine based on customer requirements
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
In-Sale Services
  • Manufacture according to relevant technical standards
  • Comprehensive run testing per equipment regulations
  • Strict quality checks before delivery
  • Guaranteed on-time delivery
After-Sale Services
  • Warranty: 18 months from delivery date or 12 months from receipt date
  • All parts replaced free during warranty for non-artificial faults
  • Technical support for quality issues related to design, manufacture, or procedures
  • Maintenance technician dispatch for major quality problems outside warranty period (charged at favorable rates)
  • Lifetime cost-price availability for materials and spare parts
  • Additional quality assurance and operation guarantees beyond basic requirements
